Structural Simulation: Modeling Contact in Implicit Analysis
Understanding the interaction between bodies is essential for solving many engineering problems. This course covers many techniques and guidelines for solving challenging contact problems in implicit analysis procedures. Participants are given a brief overview of the contact formulation and contact logic used in 3DEXPERIENCE®. The hands-on workshops provide ample opportunity to use the concepts developed in the lectures and to learn how to postprocess the results of a contact analysis.
- Level
- Advanced
- Length
- 12 hours 15 minutes
- Product
- 3DEXPERIENCE Platform
- Delivery
- Instructor-led or eLearning
What you will learn
- Define contact interactions
- Model frictional contact
- Model large sliding between deformable bodies
- Resolve overclosures in interference fit problems
- Avoid overconstraining the model
- Avoid rigid body motions and unstable motions
Topics covered
- Overview - Structural Simulation: Modeling Contact in Implicit Analysis10 mins
- 1 - Introduction30 mins
- 2 - Contact Workflow
- 3 - Surface-based Contact
- 4 - Contact Logic and Diagnostics Tools
- 5 - Contact Properties45 mins
- 6 - Interference Fits
- 7 - Additional Features
- 8 - Modeling Tips
- Appendices
Prerequisites
The following course is required prior to taking this one: Structural Simulation Essentials
Related courses
SIMULIA3DEXPERIENCE PlatformFundamental
Structural Simulation Essentials
18 hours 40 minutesView course
SIMULIA3DEXPERIENCE PlatformAdvanced
Structural Simulation: Tire Analysis
3 hours 15 minutesView course
SIMULIA3DEXPERIENCE PlatformAdvanced
Structural Simulation: Substructures and Submodeling
4 hours 15 minutesView course
SIMULIAAbaqusAdvanced
Modeling Contact with Abaqus/Standard
18 hours 15 minutesView course
SIMULIA3DEXPERIENCE PlatformAdvanced
Structural Simulation: Linear Dynamics
9 hours 15 minutesView course
SIMULIA3DEXPERIENCE PlatformAdvanced

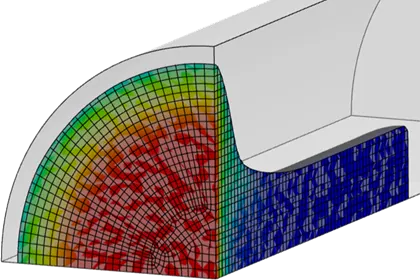

Structural Simulation: Modeling Extreme Deformation with CEL and SPH
5 hours 15 minutesView course
SIMULIA3DEXPERIENCE PlatformAdvanced
Composite Structures Simulation
9 hours 45 minutesView course
SIMULIA3DEXPERIENCE PlatformFundamental

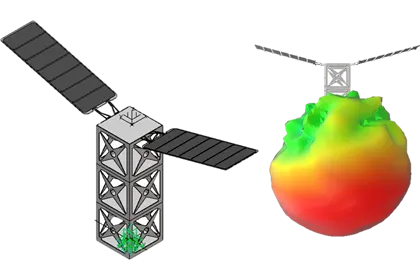

Antenna Placement Essentials
