SIMULIASimulation
Design Exploration Essentials
This course is a comprehensive introduction to the structural optimization capabilities of the Design Exploration app on the 3DEXPERIENCE® platform. Design exploration allows engineers to study and improve designs through topology and shape optimization, review and validate results and easily re-transfer optimized shapes into the downstream design process.
- Level
- Fundamental
- Length
- 11 hours 20 minutes
- Product
- 3DEXPERIENCE Platform
- Delivery
- Instructor-led or eLearning
What you will learn
- Understand design exploration on the 3DEXPERIENCE® platform
- Define topology and shape design exploration studies
- Validate and review the study results
Topics covered
- Overview - Design Exploration Essentials10 mins
- 1 - Getting Started with Generative Design1 hours
- 2 - Model Preparation for Topology Optimization
- 3 - Design Exploration: Topology
- 4 - Model Preparation Shape
- 5 - Design Exploration: Shape
- 6 - Model Preparation for Bead Optimization
- 7 - Design Exploration: Bead
Prerequisites
The following course is required prior to taking this one: Structural Simulation Essentials
Related courses
SIMULIA3DEXPERIENCE PlatformFundamental
Structural Simulation Essentials
18 hours 40 minutesView course
SIMULIA3DEXPERIENCE PlatformFundamental
Model Assembly Design Essentials
5 hours 20 minutesView course
SIMULIA3DEXPERIENCE PlatformFundamental
Perform as a Steel Structures Engineer for Marine and Offshore
35 hoursView course
SIMULIA3DEXPERIENCE PlatformFundamental
Perform as a Composite Structures Analysis Engineer
27 hoursView course
SIMULIA3DEXPERIENCE PlatformFundamental
Perform as a Composite Structures Engineer for Marine and Offshore
35 hoursView course
SIMULIA3DEXPERIENCE PlatformFundamental

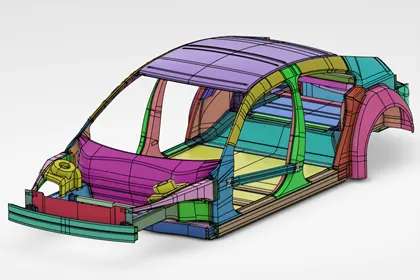

Perform as a Concept Structure Analyst
6 hoursView course
SIMULIA3DEXPERIENCE PlatformFundamental

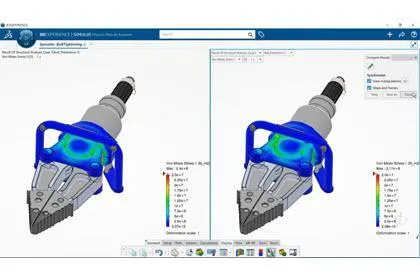

Perform as a Structural Analysis Engineer
